CD2-HM12NB | 价格

CD2-HM12NB-100μg / 询价

CD2-HM12NB-100μgx5 / 询价

CD2-HM12NB-100μgx10 / 询价

Biotinylated Human CD20/MS4A1 Nanodisc

产品信息(Product Info)
Schematic diagram of Nanodisc preparation

Our Styrene-Maleic Anhydride(SMA) nanodisc platform delivers multi-pass transmembrane proteins exactly as they exist in the HEK293 cell membrane following recombinant expression— preserving their endogenous lipid environment and correct conformational states. Isolated directly from HEK293 cells via a gentle, detergent-free process, the multi-pass membrane proteins are subsequently encapsulated by SMA to ensure their stability. These uniform soluble nanoparticles eliminate extraction interferences while maintaining biological activity. Ensuring consistent performance from lot to lot, our nanodiscs provide the reliability and biological relevance essential for antibody screening and functional characterization in therapeutic antibody drug discovery and development, as assessed by SPR, BLI, ELISA, and other standard platforms.

Features

❖  Correct structure & conformation
❖  Functional relevance ensured
❖  His-tag & biotinylation tag available

Applications

❖  Antibody screening
❖  Functional characterization(Molecular Level)
❖  Assay: SPR, BLI, ELISA

表达区间及表达系统(Source)

Recombinant Biotinylated Human CD20/MS4A1 Nanodisc is expressed from HEK293 with His tag at the C-terminus.
It contains Met1-Pro297 [Accession | P11836-1].

分子量大小(Molecular Weight)

The protein has a predicted MW of 46.0 kDa.

内毒素(Endotoxin)

Less than 1 EU per μg by the LAL method.

制剂(Formulation)

Supplied as 0.22 μm filtered solution in PBS, 200mM L-arginine (pH 7.4). Notice: Not recommended for flow cytometry in mammalian cells.

存储(Storage)

Valid for 6 months from date of receipt when stored at -80°C.
Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles.

阴性对照(Recommended Negative Control)
CON-HM1NB
产品数据(Assay Data)
ELISA Data

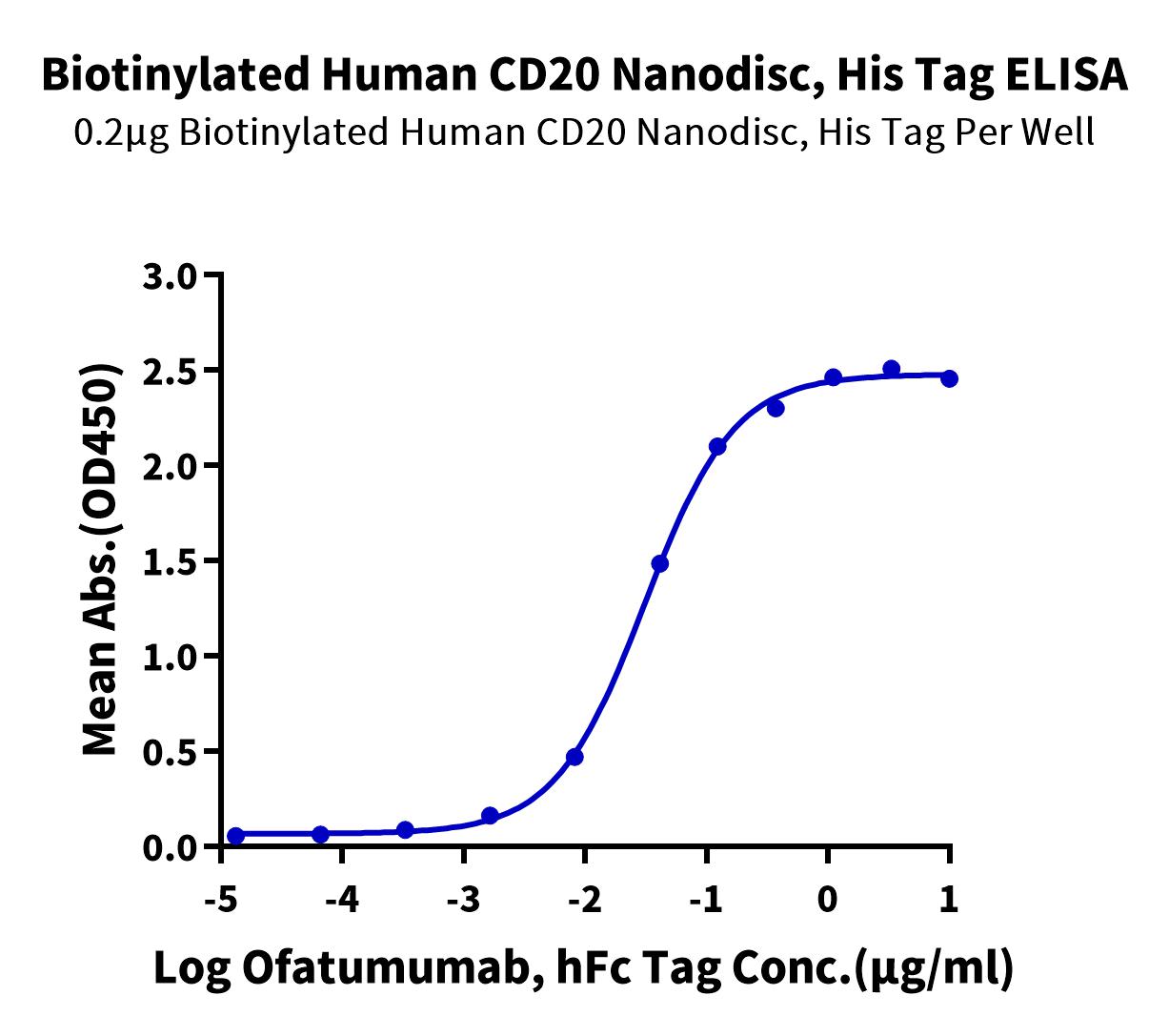

Immobilized Biotinylated Human CD20 Nanodisc, His Tag at 2μg/ml (100μl/well) on the streptavidin precoated plate (5μg/ml). Dose response curve for Ofatumumab, hFc Tag with the EC50 of 6.7ng/ml determined by ELISA. (QC Test)

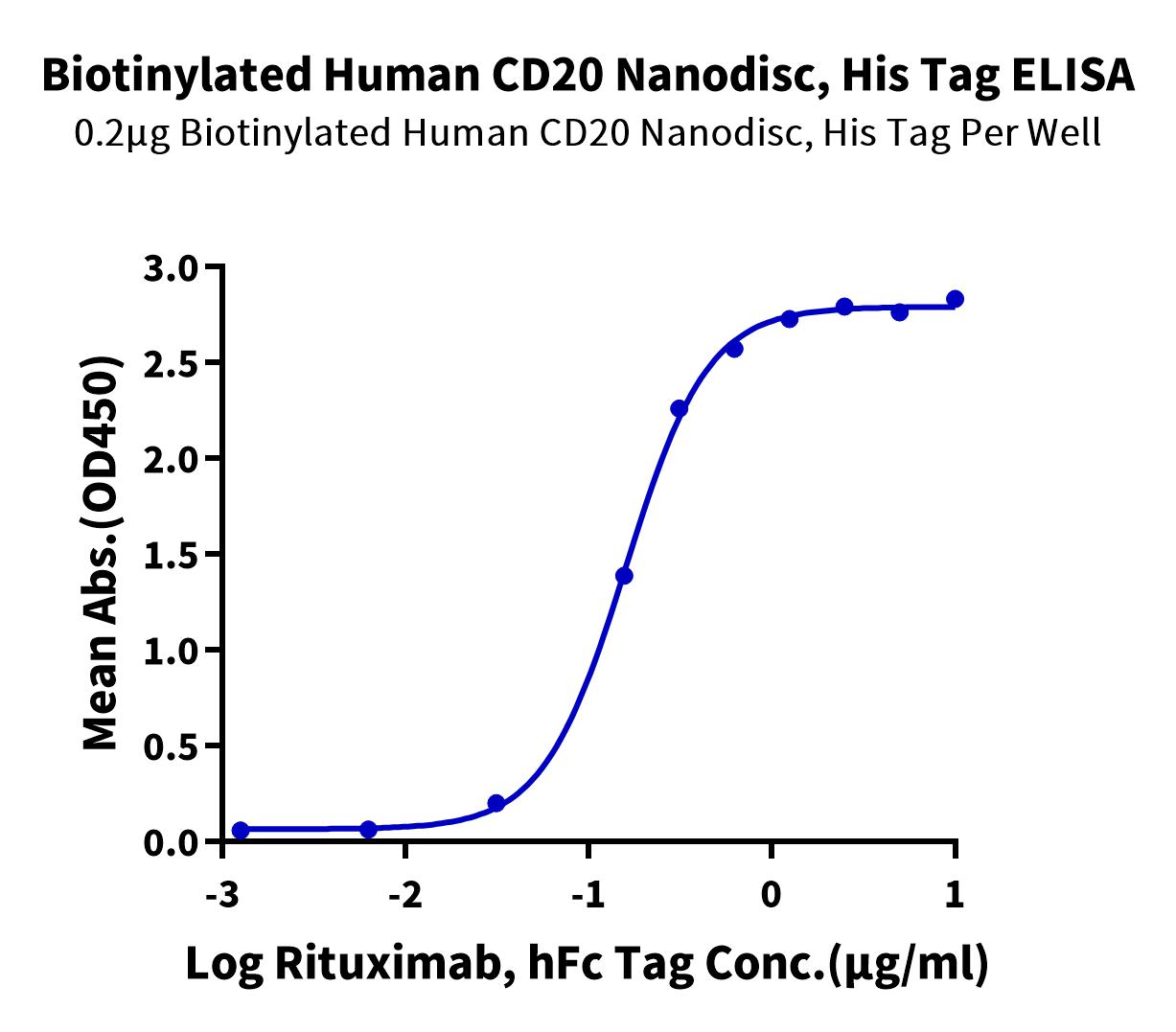

Immobilized Biotinylated Human CD20 Nanodisc, His Tag at 2μg/ml (100μl/well) on the streptavidin precoated plate (5μg/ml). Dose response curve for Rituximab, hFc Tag with the EC50 of 41.6ng/ml determined by ELISA.

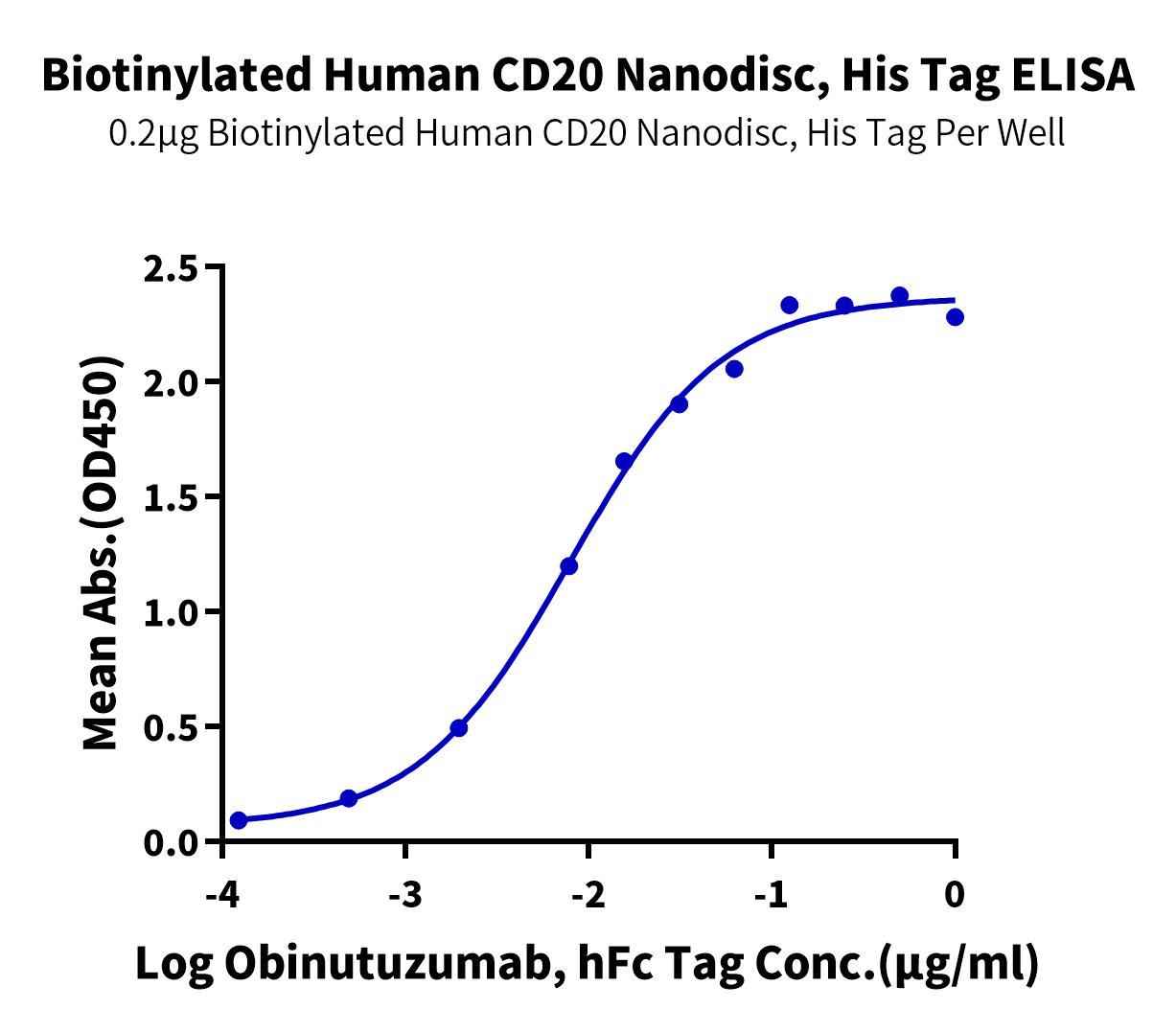

Immobilized Biotinylated Human CD20 Nanodisc, His Tag at 2μg/ml (100μl/well) on the streptavidin precoated plate (5μg/ml). Dose response curve for Obinutuzumab, hFc Tag with the EC50 of 4.0ng/ml determined by ELISA.
SPR Data

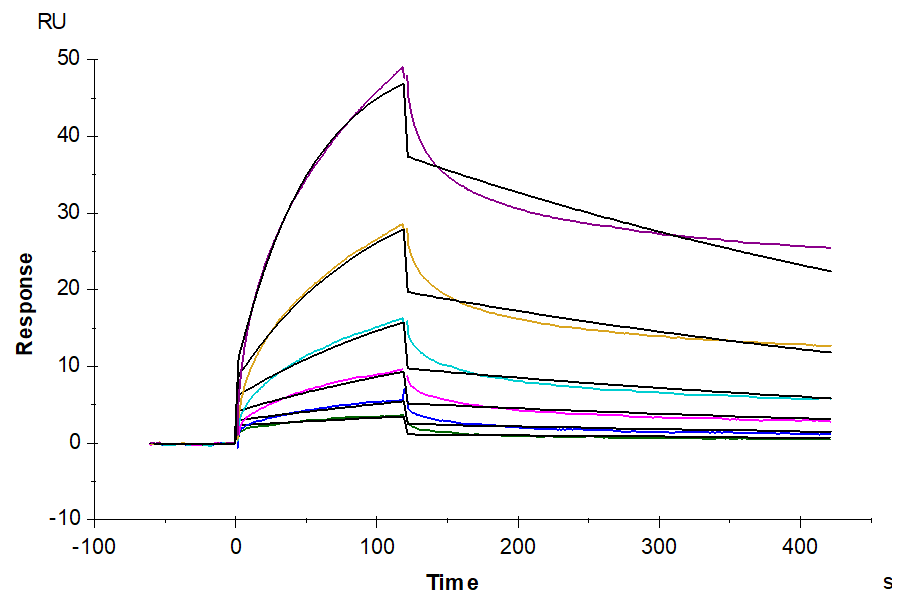

Biotinylated Human CD20 Nanodisc captured on CM5 Chip via Streptavidin can bind Rituximab, hFc Tag with an affinity constant of 10.21 nM as determined in SPR assay (Biacore T200).
BLI Data

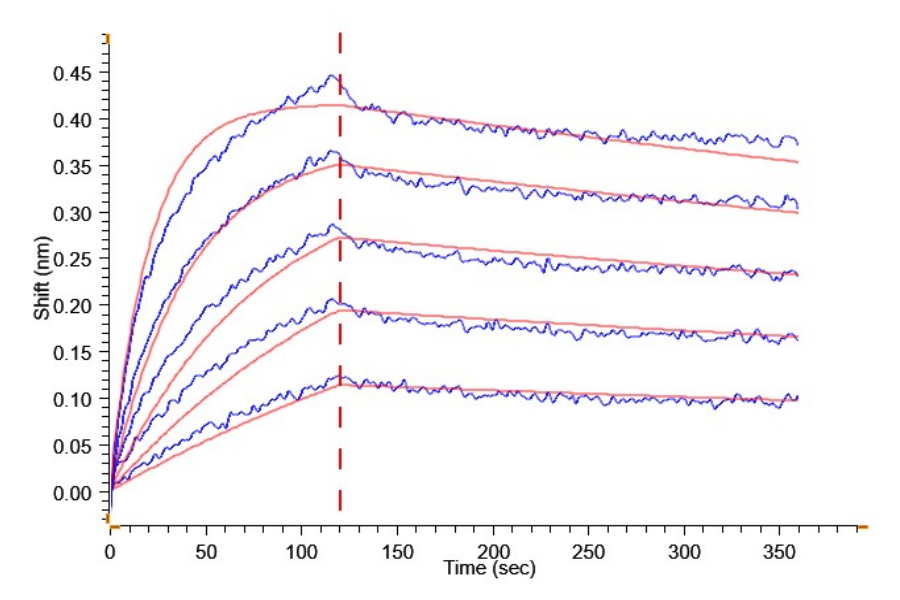

Loaded Biotinylated Human CD20 Nanodisc, His Tag on Streptavidin-Biosensor can bind Rituximab, hFc Tag with an affinity constant of 6.94 nM as determined in BLI assay.
背景(Background)

B-lymphocyte antigen CD20 or CD20 is an activated-glycosylated phosphoprotein expressed on the surface of all B-cells beginning at the pro-B phase (CD45R , CD117) and progressively increasing in concentration until maturity.CD20 is the target of the monoclonal antibodies rituximab, ocrelizumab, obinutuzumab, ofatumumab, ibritumomab tiuxetan, tositumomab, and ublituximab, which are all active agents in the treatment of all B cell lymphomas, leukemias, and B cell-mediated autoimmune diseases.

分子别名(Synonyms)

MS4A1; CD20; MS4A-1; B1; Bp35; CD20 receptor; CD20S7; CVID5; LEU-16; Ly-44; MS4A2; S7;LEU16; Ly44

文献(References)

(1)Ma D , Mcdevitt M R , Barendswaard E , et al. Radioimmunotherapy for model B cell malignancies using 90Y-labeled anti-CD19 and anti-CD20 monoclonal antibodies[J]. Leukemia, 2002, 16(1):60-66.

(2)Jager U , Fridrik M , Zeitlinger M , et al. Rituximab serum concentrations during immuno-chemotherapy of follicular lymphoma correlate with patient gender, bone marrow infiltration and clinical response[J]. Haematologica, 2012, 97(9):1431-1438.
