货号价格

CD7-CM147-100μg / 询价

CD7-CM147-500μg / 询价

CD7-CM147-500μgx2 / 询价

Cynomolgus/Rhesus macaque CD47 Protein

产品信息(Product Info)
表达区间及表达系统(Source)

Recombinant Cynomolgus/Rhesus macaque CD47 Protein is expressed from HEK293 with His tag at the C-Terminus. It contains Gln19-Glu141.[Accession | F7A802]

分子量大小(Molecular Weight)

The protein has a predicted MW of 15 kDa. Due to glycosylation, the protein migrates to 45-65 kDa based on Tris-Bis PAGE result.

内毒素(Endotoxin)

Less than 1EU per μg by the LAL method.

纯度(Purity)

> 95% as determined by Tris-Bis PAGE
> 95% as determined by HPLC

制剂(Formulation)

Lyophilized from 0.22μm filtered solution in PBS (pH 7.4). Normally 8% trehalose is added as protectant before lyophilization.

重构方法(Reconstitution)

Centrifuge the tube before opening. Reconstituting to a concentration more than 100 μg/ml is recommended. Dissolve the lyophilized protein in distilled water.

存储(Storage)

-20 to -80°C for 12 months as supplied from date of receipt.
-80°C for 3-6 months after reconstitution.
2-8°C for 2-7 days after reconstitution.
Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles.

产品数据(Assay Data)
Tris-Bis PAGE

Cynomolgus/Rhesus macaque CD47 on Tris-Bis PAGE under reduced condition. The purity is greater than 95%.

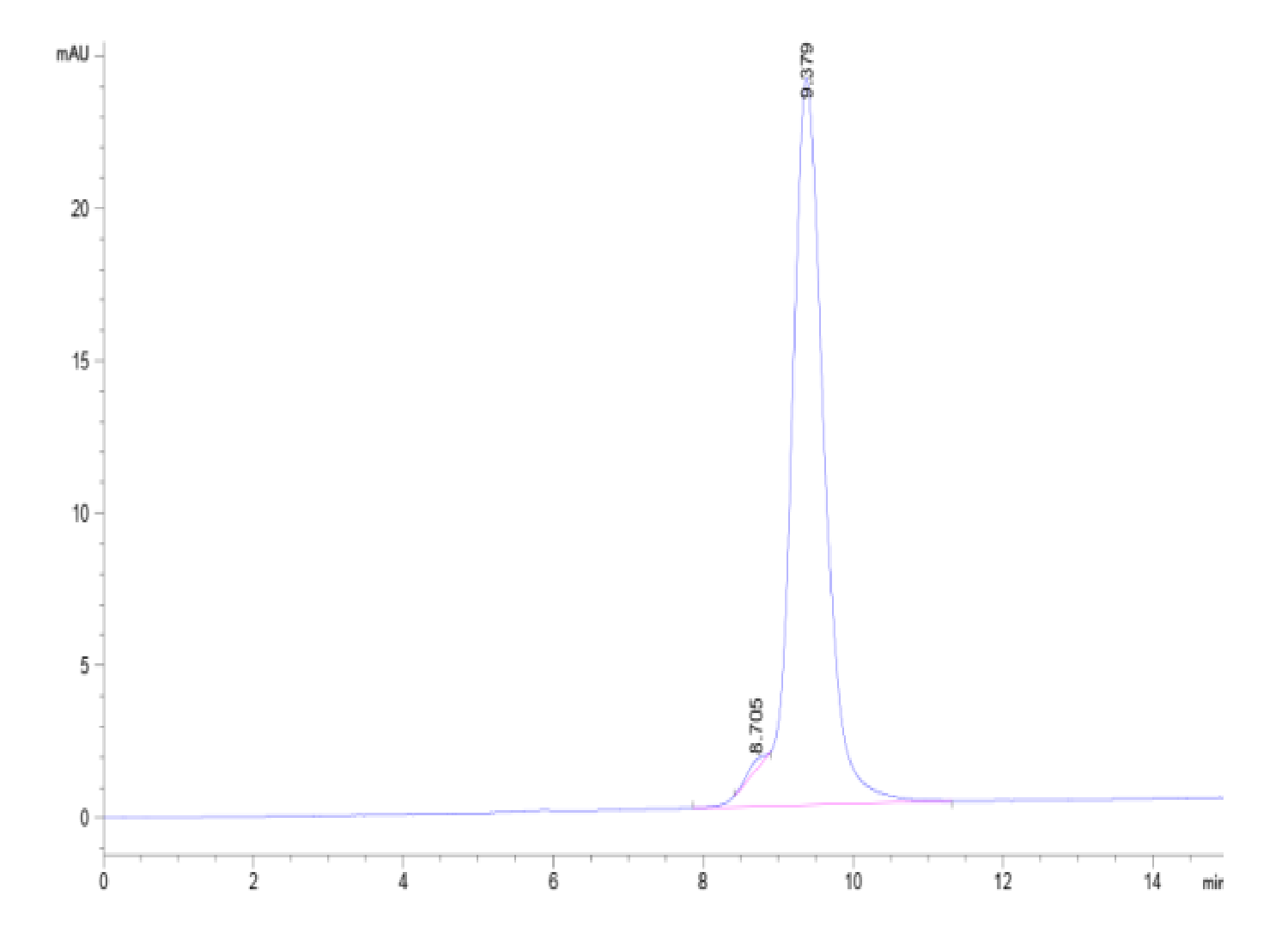

SEC-HPLC

The purity of Cynomolgus/Rhesus macaque CD47 is greater than 95% as determined by SEC-HPLC.

ELISA Data

Immobilized Cynomolgus/Rhesus macaque CD47, His Tag at 5μg/ml (100μl/well) on the plate. Dose response curve for Human SIRP alpha, hFc Tag with the EC50 of 0.52ug/ml determined by ELISA (QC Test).

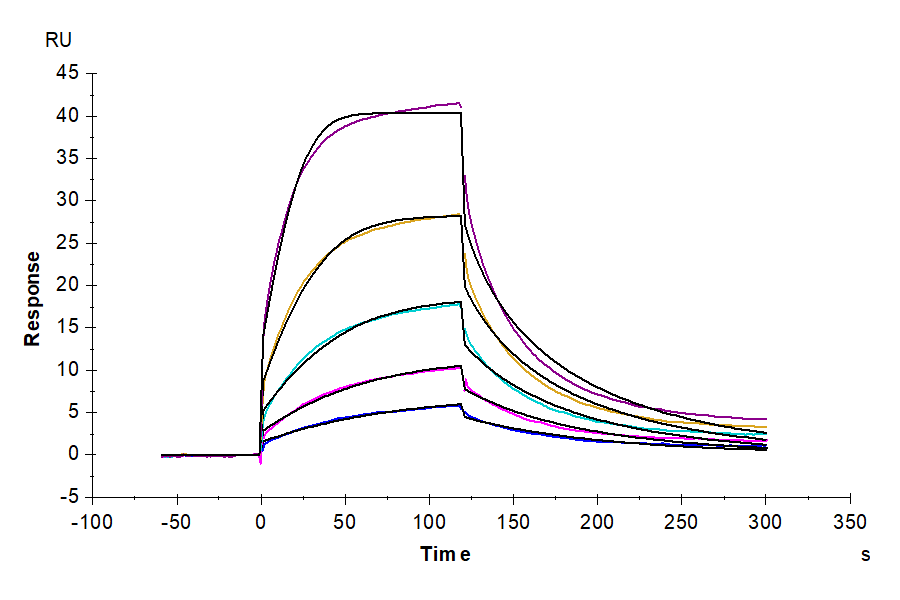

SPR Data

Cynomolgus SIRP alpha, His Tag immobilized on CM5 Chip can bind Cynomolgus /Rhesus macaque CD47, His Tag with an affinity constant of 63.27 nM as determined in SPR assay (Biacore T200).

背景(Background)

CD47 (Cluster of Differentiation 47) also known as integrin associated protein (IAP) is a transmembrane protein that in humans is encoded by the CD47 gene. CD47 belongs to the immunoglobulin superfamily and partners with membrane integrins and also binds the ligands thrombospondin-1 (TSP-1) and signal-regulatory protein alpha (SIRPα).CD-47 acts as a don't eat me signal to macrophages of the immune system which has made it a potential therapeutic target in some cancers.

分子别名(Synonyms)

CD47 glycoprotein; CD47 molecule; CD47; IAP; OA3; MER6

文献(References)

(1) Weiskopf K , Ring A M , Ho C C M , et al. Engineered SIRP? Variants as Immunotherapeutic Adjuvants to Anticancer Antibodies[J]. Science, 2013, 341(6141):88-91.

Note: HPLC results always come from liquid protein, due to absorption peak interference of trehalose in lypholized powder.
