Human SIRP alpha/CD172a Protein

产品信息(Product Info)

Recombinant Human SIRP alpha/CD172a Protein is expressed from Expi293 with hFc tag at the C-terminal. It contains Glu31-Arg370.[Accession | P78324-1]

分子量大小(Molecular Weight)

The protein has a predicted MW of 64.1 kDa. Due to glycosylation, the protein migrates to 78-90 kDa based on Tris-Bis PAGE result.


Less than 1EU per μg by the LAL method.


> 95% as determined by Tris-Bis PAGE
> 95% as determined by SEC-HPLC


Lyophilized from 0.22μm filtered solution in PBS (pH 7.4). Normally 5% trehalose is added as protectant before lyophilization.


Centrifuge tubes before opening. Reconstituting to a concentration more than 100 μg/ml is recommended. Dissolve the lyophilized protein in distilled water.


-20 to -80°C for 12 months as supplied from date of receipt.
-20 to -80°C for 3-6 months in unopened state after reconstitution.
2-8°C for 2-7 days after reconstitution.
Recommend to aliquot the protein into smaller quantities for optimal storage. Please avoid freeze-thaw cycles.

产品数据(Assay Data)

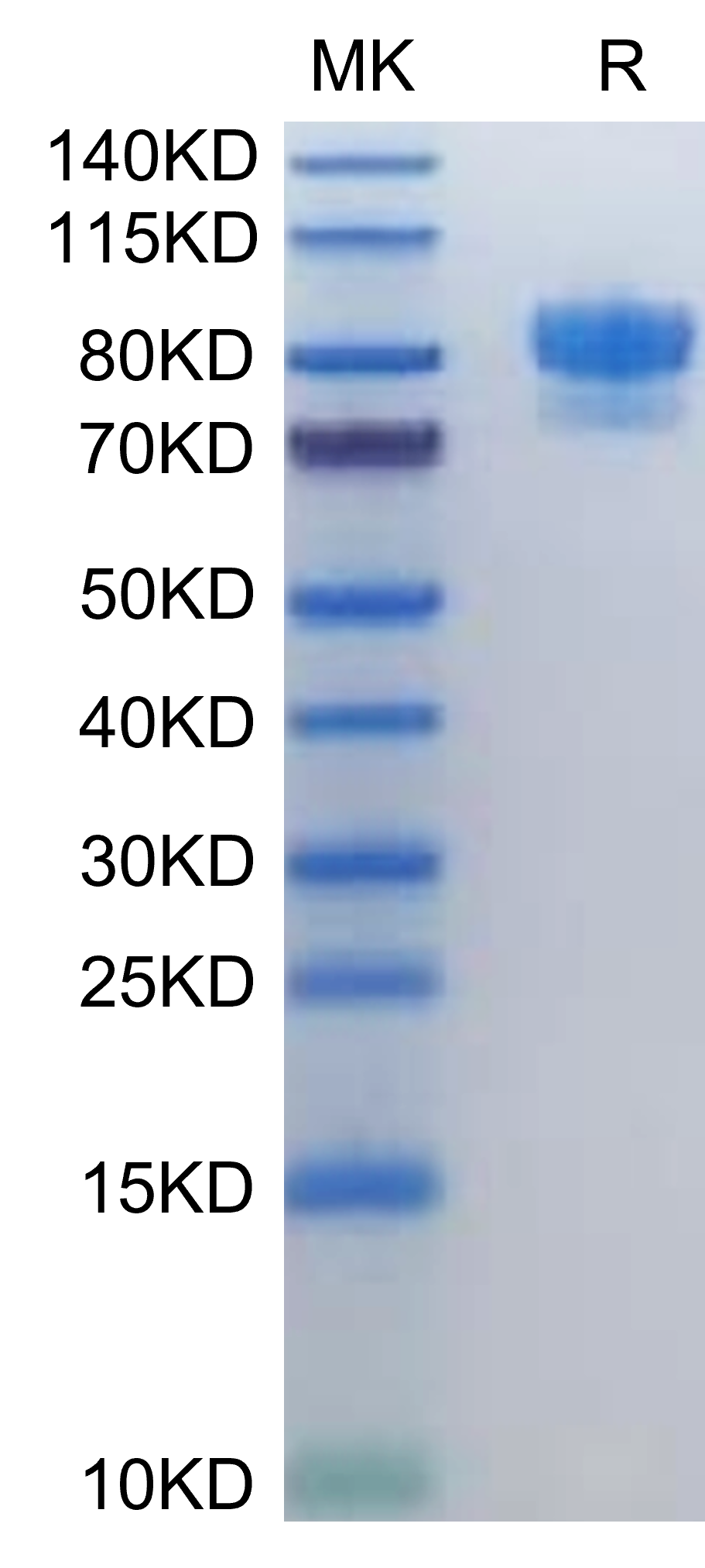

Tris-Bis PAGE

Human SIRP alpha on Tris-Bis PAGE under reduced condition. The purity is greater than 95%.

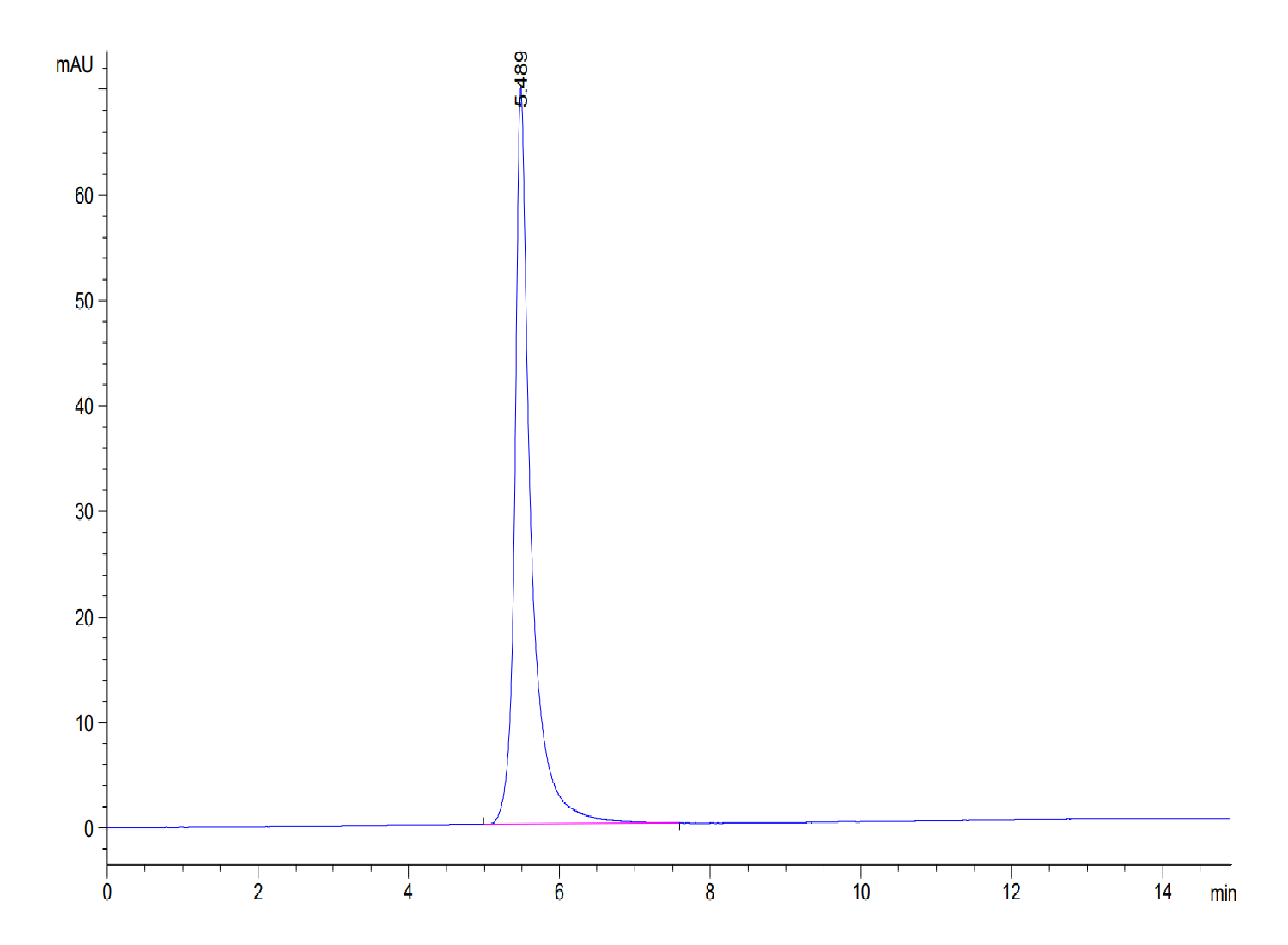

The purity of SIRP alpha is greater than 95% as determined by SEC-HPLC.

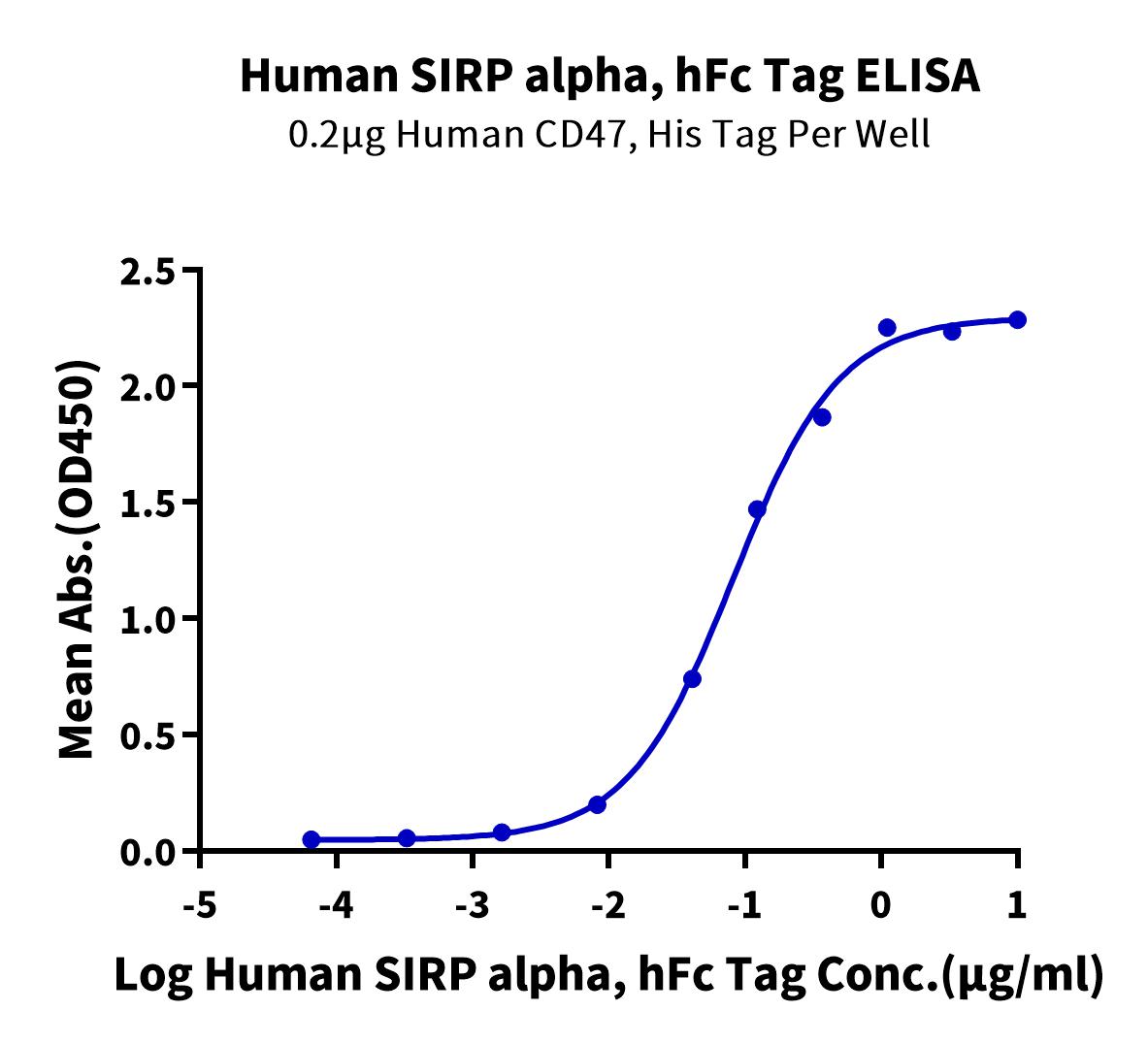

Immobilized Human CD47, His Tag at 2μg/ml (100μl/well) on the plate. Dose response curve for Human SIRP alpha, hFc Tag with the EC50 of 28.9ng/ml determined by ELISA.

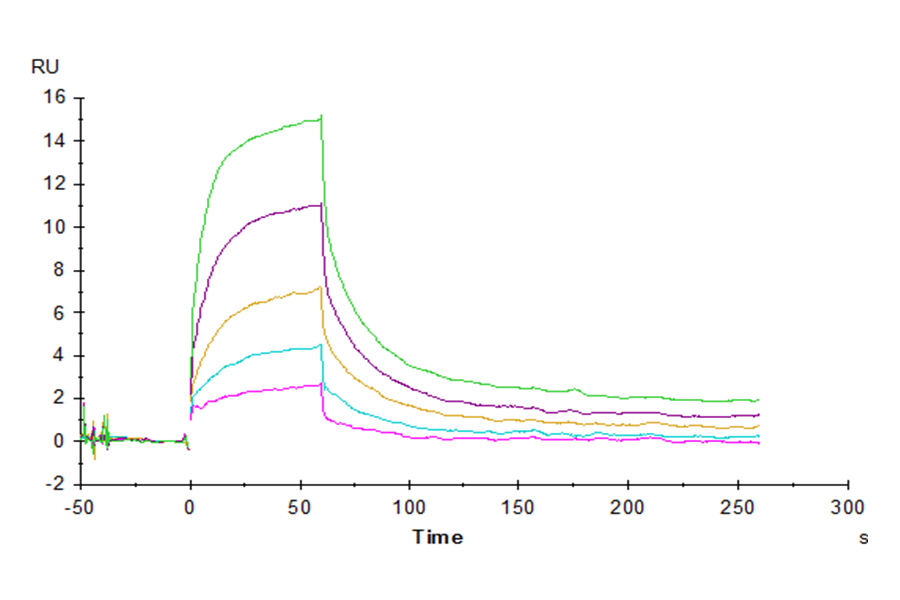

SPR Data

Human CD47, His Tag captured on CM5 Chip via Anti-His Antibody can bind Human SIRP alpha, hFc Tag with an affinity constant of 18.9nM as determined in SPR assay (Biacore T200).


Signal regulatory protein α (SIRPα) is a regulatory membrane glycoprotein from SIRP family expressed mainly by myeloid cells and also by stem cells or neurons.SIRPα acts as inhibitory receptor and interacts with a broadly expressed transmembrane protein CD47 also called the "don´t eat me" signal.Cancer cells highly expressed CD47 that activate SIRP α and inhibit macrophage-mediated destruction.


CD172a; BIT; MFR; MYD1; MYD-1; P84; PTPNS1; SHPS1; SHPS-1; SIRP alpha; SIRPA;


(1)Weiskopf K , Ring A M , Ho C C M , et al. Engineered SIRP? Variants as Immunotherapeutic Adjuvants to Anticancer Antibodies[J]. Science, 2013, 341(6141):88-91.
