Biotinylated Human PD-L1/B7-H1 Protein

产品信息(Product Info)
表达区间及表达系统(Source)

Recombinant Biotinylated Human PD-L1/B7-H1 is expressed from HEK293 with His tag and Avi tag at the C-Terminus. It contains Phe19-Arg238.[Accession | Q9NZQ7-1]

分子量大小(Molecular Weight)

The protein has a predicted MW of 28.1 kDa. Due to glycosylation, the protein migrates to 35-45 kDa based on Tris-Bis PAGE result.

内毒素(Endotoxin)

Less than 1EU per μg by the LAL method.

纯度(Purity)

> 95% as determined by Tris-Bis PAGE
> 95% as determined by HPLC

制剂(Formulation)

Lyophilized from 0.22μm filtered solution in PBS (pH 7.4). Normally 8% trehalose is added as protectant before lyophilization.

重构方法(Reconstitution)

Centrifuge the tube before opening. Reconstituting to a concentration more than 100 μg/ml is recommended. Dissolve the lyophilized protein in distilled water.

存储(Storage)

-20 to -80°C for 12 months as supplied from date of receipt.
-80°C for 3-6 months after reconstitution.
2-8°C for 2-7 days after reconstitution.
Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles.

产品数据(Assay Data)

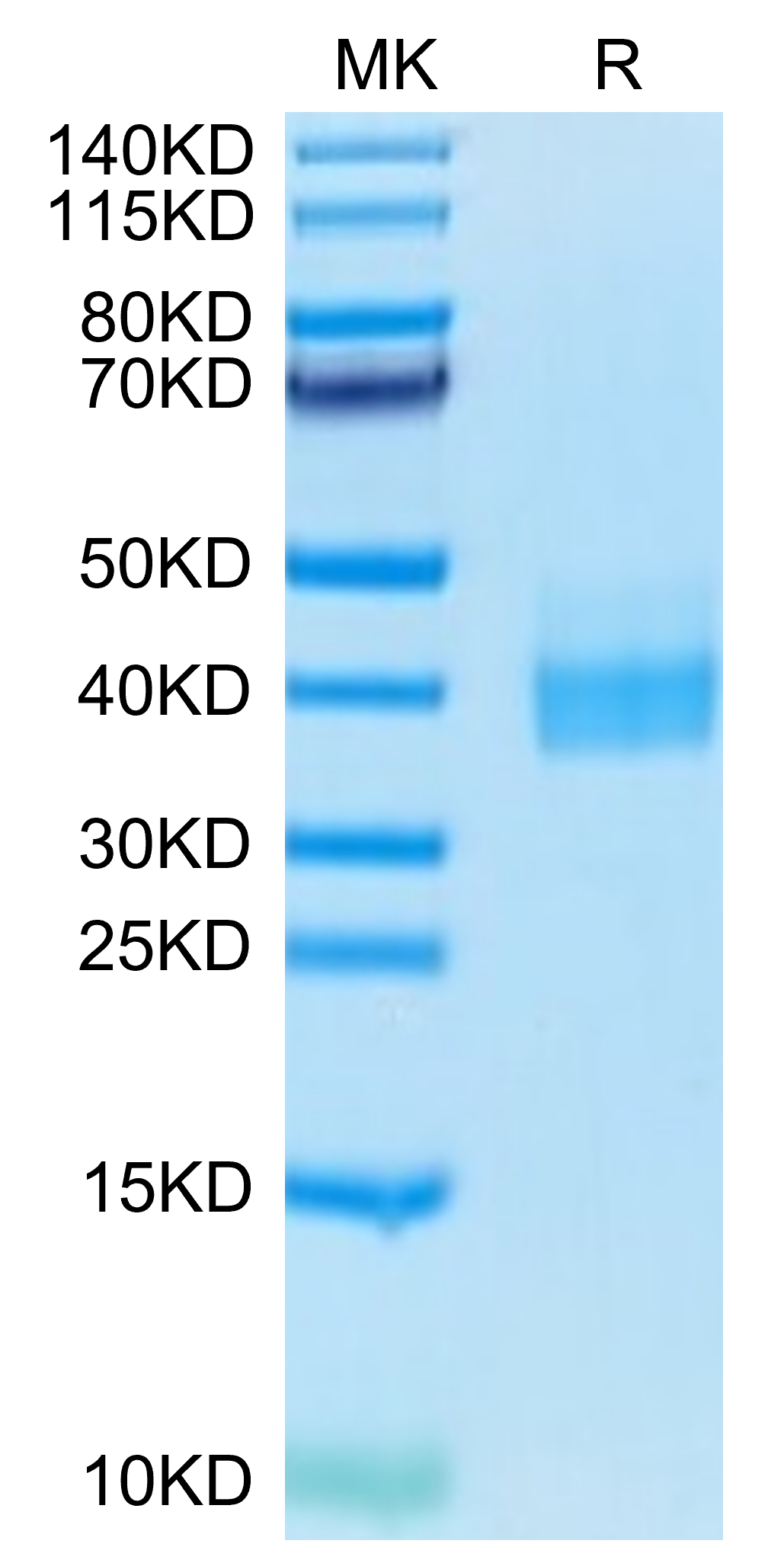

Tris-Bis PAGE

Biotinylated Human PD-L1 on Tris-Bis PAGE under reduced condition. The purity is greater than 95%.

SEC-HPLC

The purity of Biotinylated Human PD-L1 is greater than 95% as determined by SEC-HPLC.

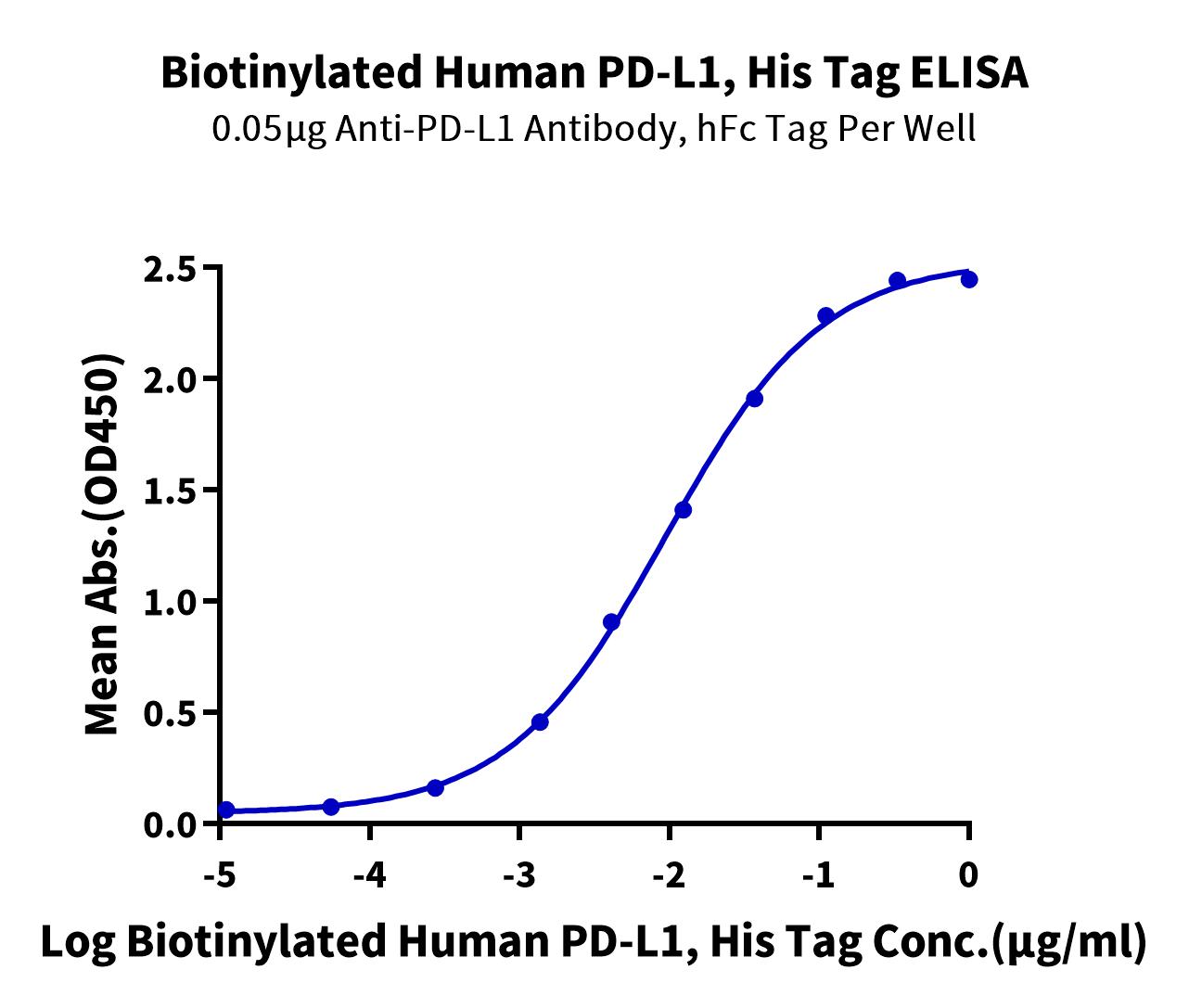

ELISA Data

Immobilized Anti-PD-L1 Antibody, hFc Tag at 0.5μg/ml (100μl/Well) on the plate. Dose response curve for Biotinylated Human PD-L1, His Tag with the EC50 of 9.4ng/ml determined by ELISA.

背景(Background)

B7-H1, also known as PD-L1 and CD274, is an approximately 65 kDa transmembrane glycoprotein in the B7 family of immune regulatory molecules. PD-L1 has been identified as the ligand for the immunoinhibitory receptor programmed death-1(PD1/PDCD1) and has been demonstrated to play a role in the regulation of immune responses and peripheral tolerance.

分子别名(Synonyms)

CD274; PDL1; PD-L1; PD-L1B7 homolog 1;B7-H; B7H1; B7-H1; PDCD1L1; PDCD1LG1

文献(References)

(1)Blank C , Mackensen A. Contribution of the PD-L1/PD-1 pathway to T-cell exhaustion: an update on implications for chronic infections and tumor evasion[J]. Cancer Immunology Immunotherapy, 2007, 56(5):739-745.

Note: HPLC results always come from liquid protein, due to absorption peak interference of trehalose in lypholized powder.
